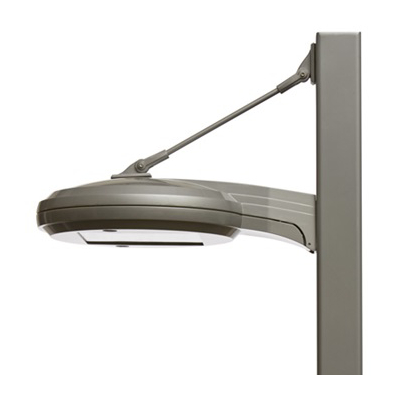

Omero™ Suspend Area and Roadway Lighting HID CFL Outdoor

Streets, walkways, parking lots and surrounding areas.

Construction

Rugged, die-cast, single piece aluminum housing with nominal wall thickness of 1/8”. Die-cast doorframe has impact-resistant, tempered, glass lens (3/16” thick). Doorframe is fully gasketed with one-piece tubular silicone.

Finish: Standard finish is dark bronze (DDB) corrosion resistant polyester powder finish, with other architectural colors available.

Optics

MIRO finish, segmented reflectors for superior uniformity and control. Reflectors attach with tool-less fastener and are rotatable and interchangeable. Four cutoff distributions available: Type II (roadway), Type III (asymmetric), Type IV (forward throw), Type IV (sharp cutoff) Size 2 only, and Type V (symmetric square).

Nighttime Friendly™ – Omero™ die-cast housing, dedicated optical platform, aesthetically pleasing tension rod assembly, 2 housing sizes, flat lens, 400W max. House-side shield available in R2 and R3 only.

Electrical

50W-150W utilizes a high reactance, high power factor ballast. 35S utilizes a reactance high power factor ballast. 175W utilizes a constant-wattage auto transformer ballast. CF has 42W electronic high-frequency ballast, starting temperature 0°F (-18°C). Ballasts are mounted on a removable power tray. Four-pin, white thermoplastic body with quick-connect push-in wiring terminals. Copper alloy.

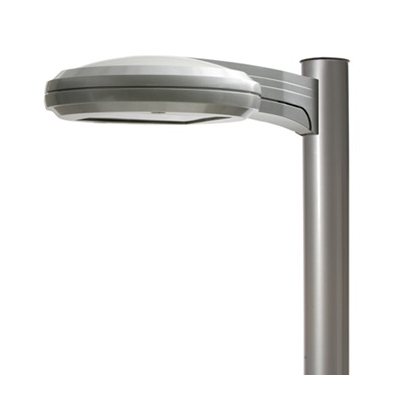

Omero™ Area and Roadway Lighting HID CFL Outdoor

Streets, walkways, parking lots and surrounding areas.

Construction

Rugged, die-cast, single piece aluminum housing with nominal wall thickness of 1/8”. Die-cast doorframe has impact-resistant, tempered, glass lens (3/16” thick). Doorframe is fully gasketed with one-piece tubular silicone. U.S. Patent No. D556,357.

Finish: Standard finish is dark bronze (DDB) corrosion resistant polyester powder finish, with other architectural colors available.

Optics

MIRO finish, segmented reflectors for superior uniformity and control. Reflectors attach with tool-less fastener and are rotatable and interchangeable. Five full cutoff distributions available: Type II (roadway), Type III (asymmetric), Type IV (forward throw, Type IV (sharp cutoff) Size 2 only, and Type V (symmetric square).

Nighttime Friendly™ – Omero™ die-cast housing, dedicated optical platform, 2 housing sizes.

Electrical

50W-150W utilizes a high reactance, high power factor ballast. 35S utilizes a reactance high power factor ballast. 175W utilizes a constant-wattage auto transformer ballast. CF has 42W electronic high-frequency ballast, starting temperature 0°F (-18°C). Ballasts are mounted on a removable power tray. Four-pin, white thermoplastic body with quick-connect push-in wiring terminals. Copper alloy.

Installation

Mounting: Mounting options include Square (SPA) or Round Pole (RPA) mounting, Wall bracket (WBA) and the Suspend option available in both housing sizes (MRT1/MRT2).

Decorative Poles – Architectural distinction from top to bottom. Optional decorative bases complete the contemporary daytime assembly.

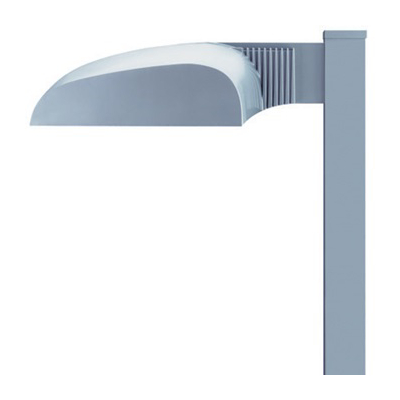

Aeris™ Area and Roadway Lighting HID CFL Outdoor

For streets, walkways, parking lots and surrounding areas.

Construction

Housing: Die-cast single-piece aluminum with nominal 1/8″ wall thickness. Integral arm provides easy installation to pole or wall. Housing completely sealed against moisture or environmental contaminants.

Door Assembly: Die-cast door frame, impact-resistant, tempered, glass lens, 3/16″ thick, fully sealed with one-piece tubular silicone gasket. Tool-less entry and closure via spring-loaded die-cast latches.

Finish: Standard finish is dark bronze (DDB) corrosion-resistant polyester powder finish. Other architectural colors available.

Optics

Anodized segmented reflectors for superior uniformity and control. Reflectors attach with tool-less fasteners and are rotatable and interchangeable.

Nighttime Friendly™ – Aeris™ die-cast housing, dedicated optical platform, 2 housing sizes, flat lens, 400W max. House-side shield available in SR2, SR3 and SR4W.

Electrical

150W and below utilize a high reactance, high power factor. 175W and above use a constant-wattage autotransformer ballast. Compact fluorescent uses an electronic high frequency ballast. Ballasts mounted on removable power tray with tool-less latch and have positive locking disconnect plugs. Ballasts are copper wound and 100% factory tested.

Socket: Porcelain, medium-base socket for AS1, mogul-base socket for AS2, with copper alloy nickel-plated screw shell and center contact. Fluorescent is four-pin positive latching thermoplastic. UL Listed.

Installation

Heavy-duty easy-mount block attaches to pole or wall to provide ease of installation as well as ensured alignment and leveling.

Mounting: Mounting options include Square (SPA) or Round Pole (RPA) mounting; Decorative Arms – Curved and Straight; Wall bracket(WBA); Mast Arm Adaptor (ASKMA1); Suspend Mounting (AST).
